torchxai

Explain any PyTorch vision model in one line of code.
10 methods. 24 models verified end-to-end. CNNs, ViTs, YOLO26, RF-DETR, DINOv2, and more.

Quickstart • Installation • Methods • Examples • API Reference • Troubleshooting

---

Why torchxai?

Most explainability libraries make you write 20+ lines of boilerplate, only work with specific model architectures, and crash on Vision Transformers. torchxai does it in one line:

from torchxai import explain
heatmap = explain(model, "photo.jpg")

That's it. It works with any PyTorch vision model — ResNet, ViT, EfficientNet, CLIP, YOLO, Swin, DeiT, DINO, and more. No config files. No architecture-specific code. No boilerplate.

What makes it different

Feature	torchxai	pytorch-grad-cam	captum	tf-explain
One-line API	✅ explain(model, img)	❌ 15+ lines	❌ 20+ lines	❌ TF only
Auto-detects architecture	✅ CNN + ViT + YOLO	❌ Manual config	❌ Manual config	❌
Vision Transformer support	✅ Native	⚠️ Partial	⚠️ Partial	❌
String path input	✅ explain(m, "dog.jpg")	❌	❌	❌
Headless server support	✅ Auto Agg backend	❌ Crashes	❌	❌
Built-in metrics	✅ Insertion/Deletion/Stability	❌	⚠️ Separate	❌
Graceful fallbacks	✅ Always produces output	❌ Crashes	❌ Crashes	❌

---

⚡ Quickstart

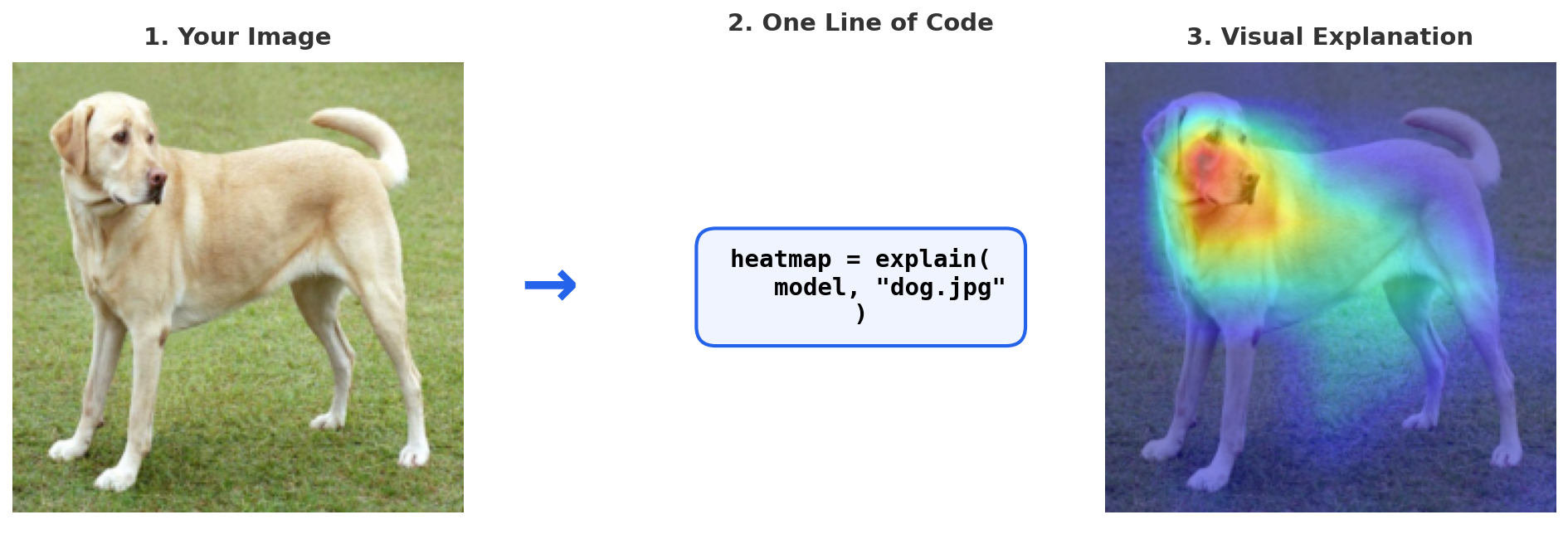

3 lines to your first explanation

from torchxai import explain
import torchvision.models as models

model = models.resnet50(pretrained=True)
heatmap = explain(model, "dog.jpg")  # Returns (224, 224) numpy array

Visualize it

from torchxai import explain, show_explanation
from PIL import Image

model = models.resnet50(pretrained=True)
heatmap = explain(model, "dog.jpg")
show_explanation(Image.open("dog.jpg"), heatmap, title="What the model sees")

Compare methods side by side

from torchxai import explain, create_comparison
from PIL import Image

heatmaps = {
    "GradCAM": explain(model, img, method="gradcam"),
    "EigenCAM": explain(model, img, method="eigencam"),
    "LayerCAM": explain(model, img, method="layercam"),
    "GradCAM++": explain(model, img, method="gradcam_pp"),
}
create_comparison(Image.open("dog.jpg"), heatmaps, save_path="comparison.png")

---

📦 Installation

pip install torchxai-explain

Requirements: Python 3.8+ and PyTorch 1.9+. That's all.

For development:

git clone https://github.com/rigvedrs/torchxai.git
cd torchxai
pip install -e ".[dev]"

---

🔬 Methods

torchxai includes 10 explainability methods. Each produces a saliency heatmap showing which image regions matter most for the model's prediction.

Method	Type	Needs Gradients	Best For
GradCAM	Gradient-weighted	✅	General-purpose CNN explanation
GradCAM++	Gradient-weighted	✅	Multiple objects of same class
LayerCAM	Gradient-weighted	✅	Fine-grained spatial detail
EigenCAM	Activation-based	❌	Fast, gradient-free explanation
ScoreCAM	Perturbation-based	❌	Most faithful, no gradients
SmoothGrad	Input gradients	✅	Pixel-level attribution
Integrated Gradients	Axiomatic	✅	Theoretically grounded
RISE	Black-box sampling	❌	Model-agnostic, any architecture
Attention Rollout	Attention-based	❌	Vision Transformers (ViT)
Transformer Attribution	Gradient + Attention	✅	Class-specific ViT explanation

Don't know which to pick? Just use explain(model, image) — it auto-selects the best method for your model architecture.

→ Detailed method guide with math and intuition

---

🎯 Features

Accept any input format

# Tensor (already preprocessed)
heatmap = explain(model, tensor)

# PIL Image
heatmap = explain(model, Image.open("dog.jpg"))

# File path (string or Path)
heatmap = explain(model, "dog.jpg")
heatmap = explain(model, Path("dog.jpg"))

# 3D tensor (auto-adds batch dimension)
heatmap = explain(model, torch.randn(3, 224, 224))

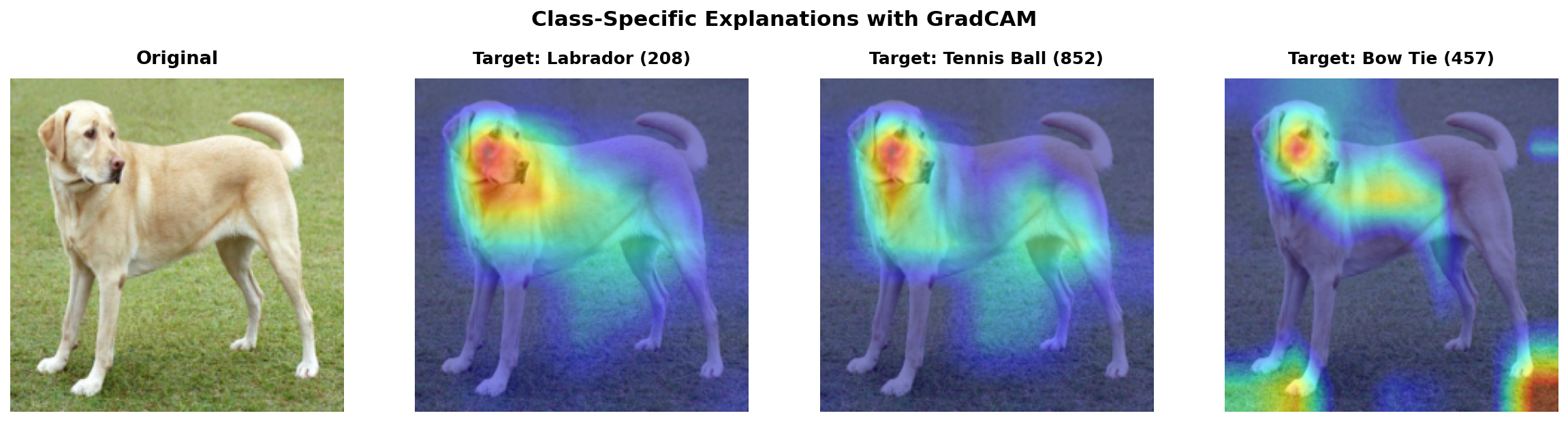

Class-specific explanations

Ask "why did the model predict THIS class?" instead of just "where is it looking?"

heatmap_dog = explain(model, img, target_class=208)      # Labrador
heatmap_ball = explain(model, img, target_class=852)      # Tennis ball
heatmap_collar = explain(model, img, target_class=457)    # Bow tie

Customizable visualization

from torchxai import overlay_heatmap, show_explanation, save_heatmap

# Overlay on image
blended = overlay_heatmap(image, heatmap, colormap="jet", alpha=0.5)

# Side-by-side visualization
show_explanation(image, heatmap, save_path="output.png")

# Save raw heatmap
save_heatmap(heatmap, "heatmap.png", colormap="viridis")

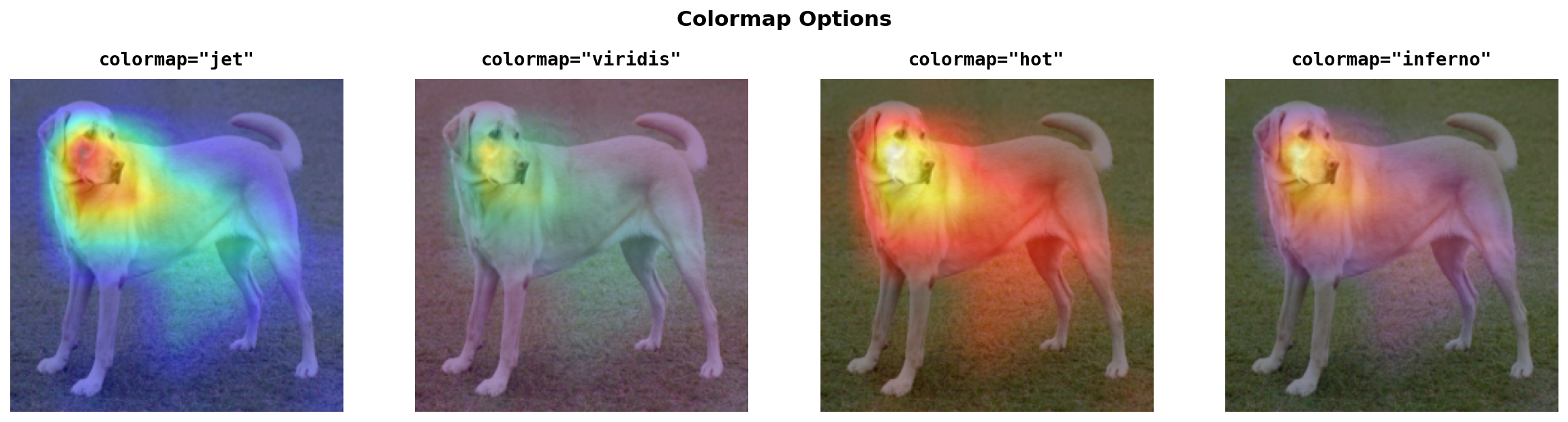

Colormap options:

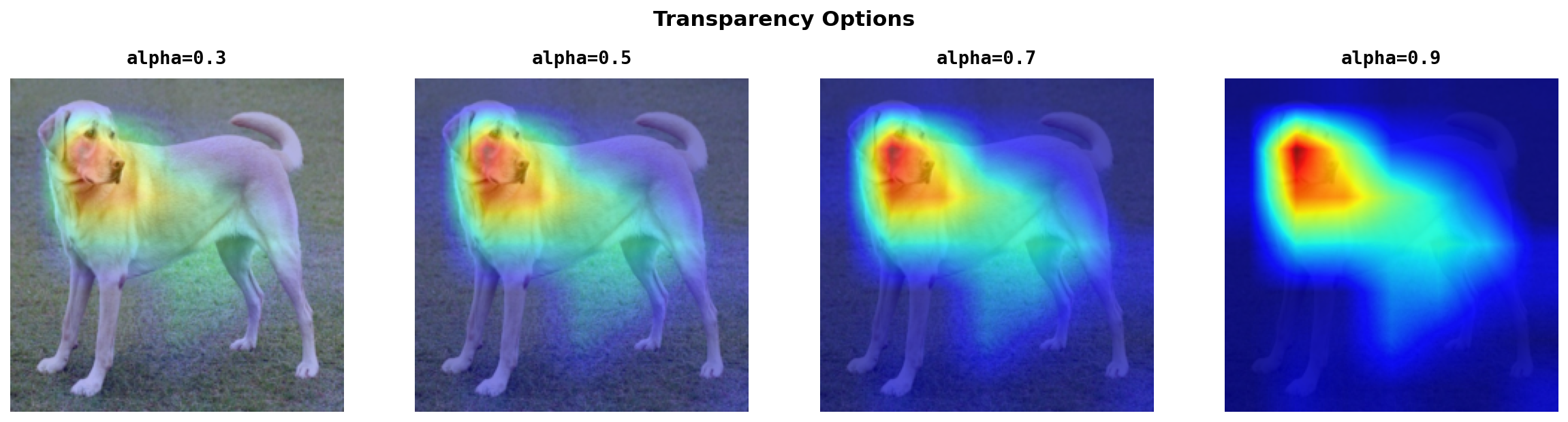

Transparency control:

Quantitative metrics

Don't just look at heatmaps — measure how good they are:

from torchxai import insertion_score, deletion_score, stability_score

# Does removing highlighted pixels drop confidence? (lower = better)
d_score = deletion_score(model, tensor, heatmap)

# Does revealing highlighted pixels restore confidence? (higher = better)
i_score = insertion_score(model, tensor, heatmap)

# Are explanations consistent under small perturbations? (higher = more stable)
s_score = stability_score(GradCAM(model), tensor)

Works on headless servers

No more TclError: no display name crashes. torchxai auto-detects headless environments (SSH, Docker, CI) and switches to the Agg matplotlib backend. Visualization functions save to files or return numpy arrays — no display required.

---

📖 Examples

CNN Explainability (ResNet, EfficientNet, VGG)

import torchvision.models as models
from torchxai import explain, show_explanation
from PIL import Image

# Any torchvision model
model = models.resnet50(pretrained=True)

# Explain
heatmap = explain(model, "cat.jpg")

# Visualize
show_explanation(Image.open("cat.jpg"), heatmap, save_path="resnet_explanation.png")

Vision Transformer (ViT, DeiT, Swin)

import timm
from torchxai import explain

# Any timm model — auto-detected
model = timm.create_model("vit_base_patch16_224", pretrained=True)
heatmap = explain(model, "photo.jpg")  # Just works

Custom target layer

from torchxai import GradCAM

# By name
cam = GradCAM(model, target_layer="layer3")

# By module reference
cam = GradCAM(model, target_layer=model.layer3[-1])

heatmap = cam("photo.jpg")

Batch comparison script

from torchxai import explain, create_comparison
from PIL import Image

model = ...  # Your model
image = Image.open("test.jpg")

results = {}
for method in ["gradcam", "eigencam", "layercam", "gradcam_pp"]:
    results[method] = explain(model, image, method=method)

create_comparison(image, results, save_path="all_methods.png")

→ More examples

---

📚 Documentation

Document	Description
Getting Started	Installation, first explanation in 60 seconds
API Reference	Every function, every parameter, return types
Methods Guide	How each method works, when to use which
Advanced Usage	Custom layers, metrics, deployment, optimization
Troubleshooting	Common errors with exact fixes
Model Compatibility	Tested models with proof images
Contributing	How to contribute

---

🤝 Contributing

Contributions are welcome. See CONTRIBUTING.md for guidelines.

git clone https://github.com/rigvedrs/torchxai.git
cd torchxai
pip install -e ".[dev]"
pytest tests/ -v

---

📄 License

MIT License. See LICENSE for details.

---

⭐ Citation

If you use torchxai in your research, please cite:

@software{torchxai2026,
  title={torchxai: Universal Explainability for PyTorch Vision Models},
  author={Rigved Sandeep Shirvalkar},
  year={2026},
  url={https://github.com/rigvedrs/torchxai}
}

---

If torchxai helps your work, consider giving it a ⭐
