Model Compatibility — 20 Model Families + 4 Detectors, All Verified

Every result on this page was generated with real pretrained models by generate_proof_images.py. Each heatmap is also scored automatically against a foreground/background split of the test photo — a combination is only marked ✅ if its heatmap actually lands on the subject. Numbers below are CPU timings from the latest verification run; the raw scores live in verification_results.json.

All proof images live in docs/assets/proof/. Nothing is mocked or simulated — every heatmap was produced on the same Labrador Retriever photo (original_dog.jpg).

Legend: ✅ verified (heatmap focuses on the subject) · ⚠️ known limitation (see notes) · — not applicable

---

Section 1: CNN Classifiers

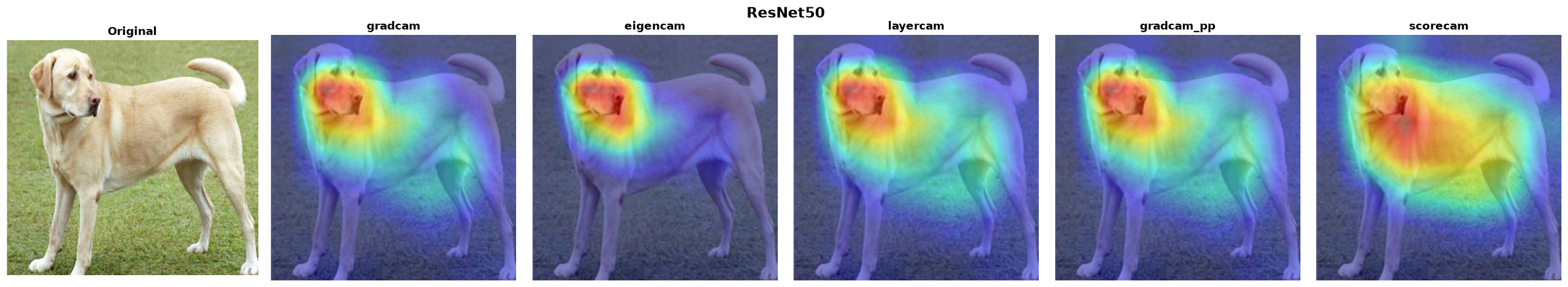

1. ResNet50 (torchvision)

Method	Status	Time
GradCAM	✅	81ms
EigenCAM	✅	171ms
LayerCAM	✅	61ms
GradCAM++	✅	58ms
ScoreCAM	✅	2,274ms

from torchxai import explain
import torchvision.models as models

model = models.resnet50(pretrained=True)
heatmap = explain(model, "dog.jpg")  # Just works

---

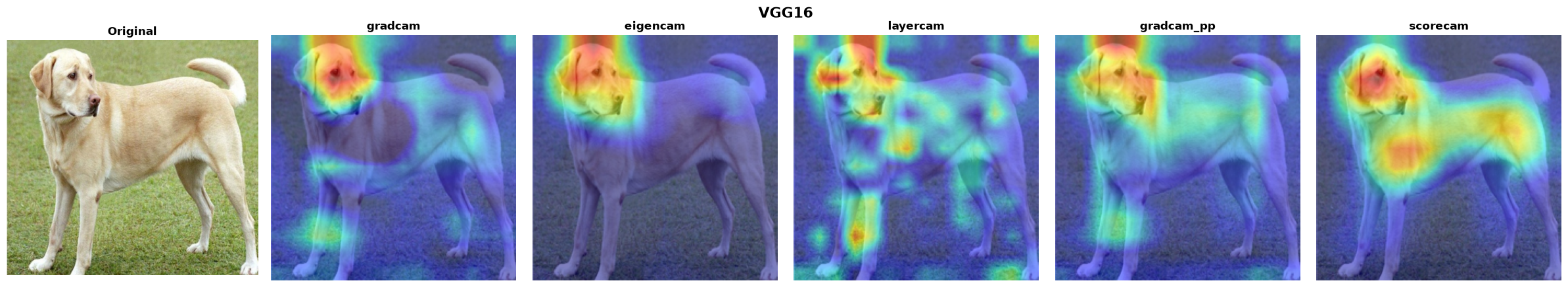

2. VGG16 (torchvision)

torchxai hooks the ReLU after the last convolution (post-activation, 14×14) so every method — including activation-based ScoreCAM — sees non-negative feature maps at full resolution.

Method	Status	Time
GradCAM	✅	420ms
EigenCAM	✅	278ms
LayerCAM	✅	176ms
GradCAM++	✅	157ms
ScoreCAM	✅	2,113ms

model = models.vgg16(pretrained=True)
heatmap = explain(model, "dog.jpg")

---

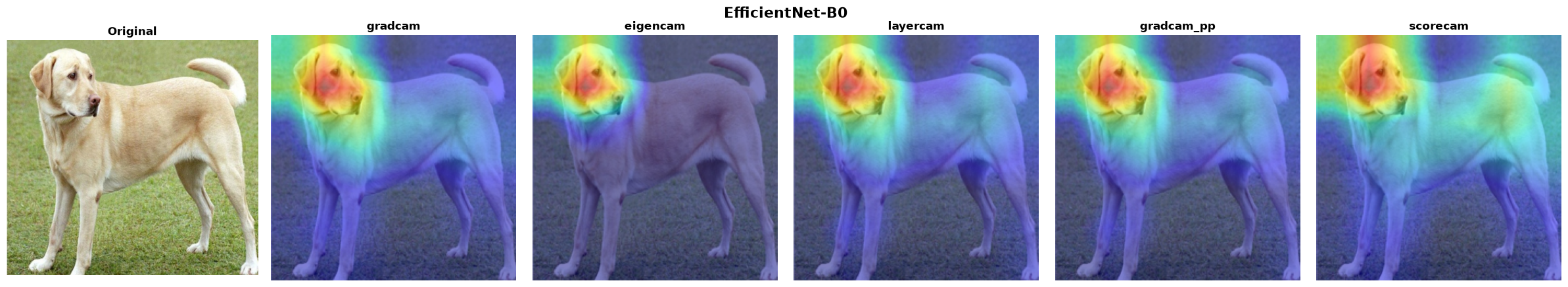

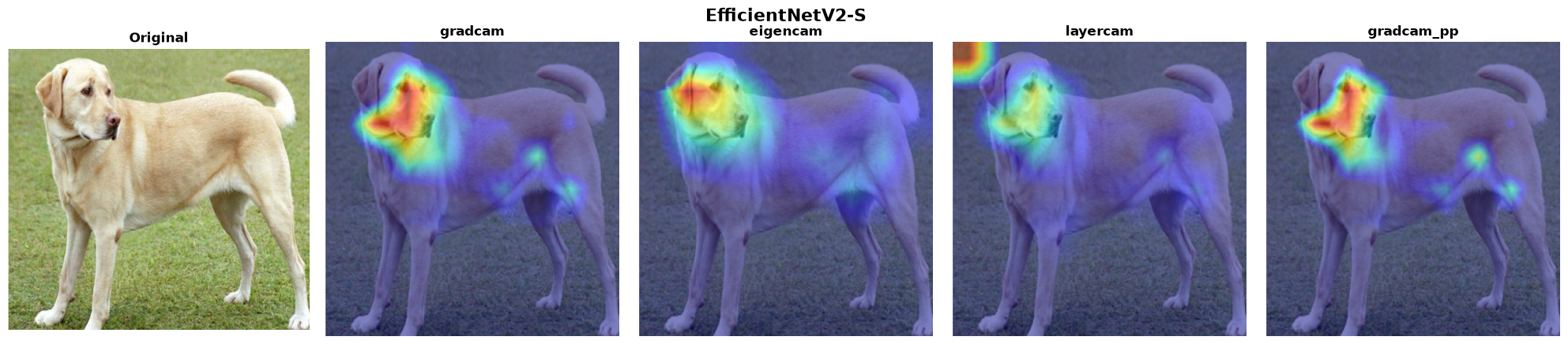

3. EfficientNet-B0 (torchvision) & EfficientNetV2-S (timm)

Method	B0	V2-S
GradCAM	✅ 616ms	✅ 2,525ms
EigenCAM	✅ 873ms	✅ 456ms
LayerCAM	✅ 614ms	✅ 3,773ms
GradCAM++	✅ 613ms	✅ 4,094ms
ScoreCAM	✅ 7,139ms	—

model = models.efficientnet_b0(pretrained=True)
heatmap = explain(model, "dog.jpg")

# timm variant
import timm
model = timm.create_model("efficientnetv2_rw_s.ra2_in1k", pretrained=True)
heatmap = explain(model, "dog.jpg")

---

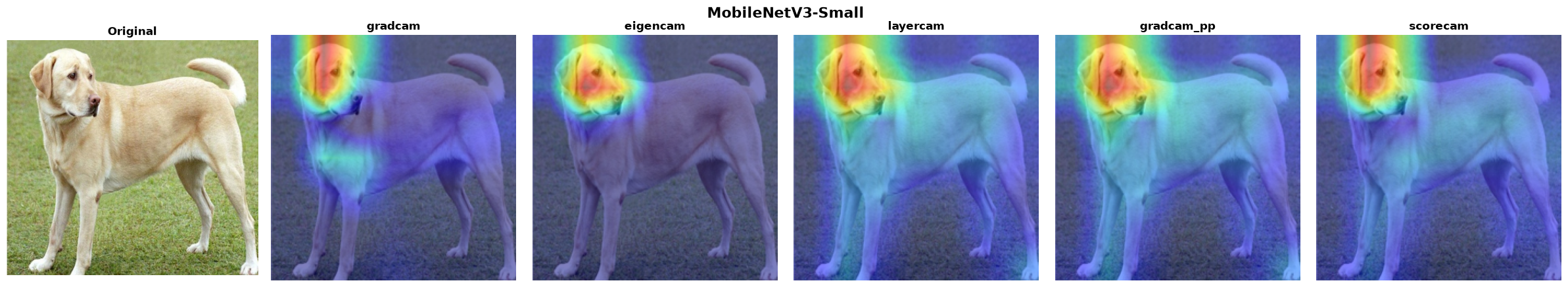

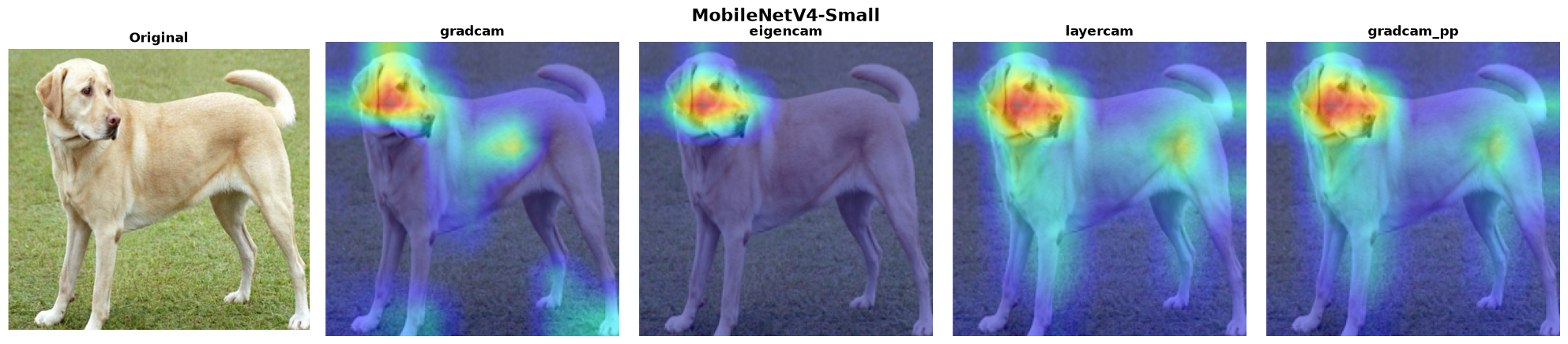

4. MobileNetV3-Small (torchvision) & MobileNetV4-Small (timm)

For timm's MobileNet family, conv_head runs after global pooling — hooking it yields a useless 1×1 map. torchxai automatically targets the last spatial block instead.

Method	V3-Small	V4-Small
GradCAM	✅ 421ms	✅ 563ms
EigenCAM	✅ 315ms	✅ 101ms
LayerCAM	✅ 177ms	✅ 298ms
GradCAM++	✅ 178ms	✅ 296ms
ScoreCAM	✅ 2,408ms	—

model = models.mobilenet_v3_small(pretrained=True)
heatmap = explain(model, "dog.jpg")

model = timm.create_model("mobilenetv4_conv_small.e2400_r224_in1k", pretrained=True)
heatmap = explain(model, "dog.jpg")

---

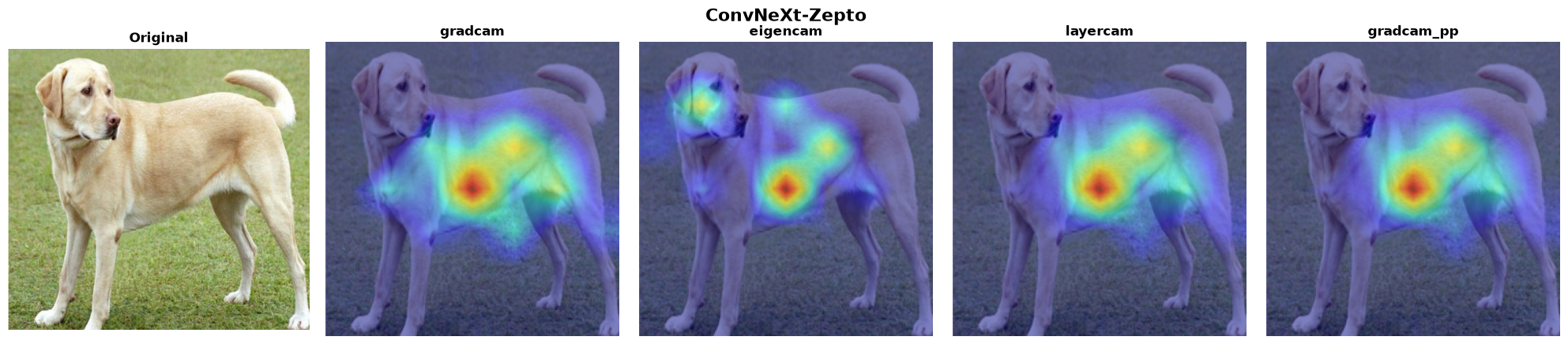

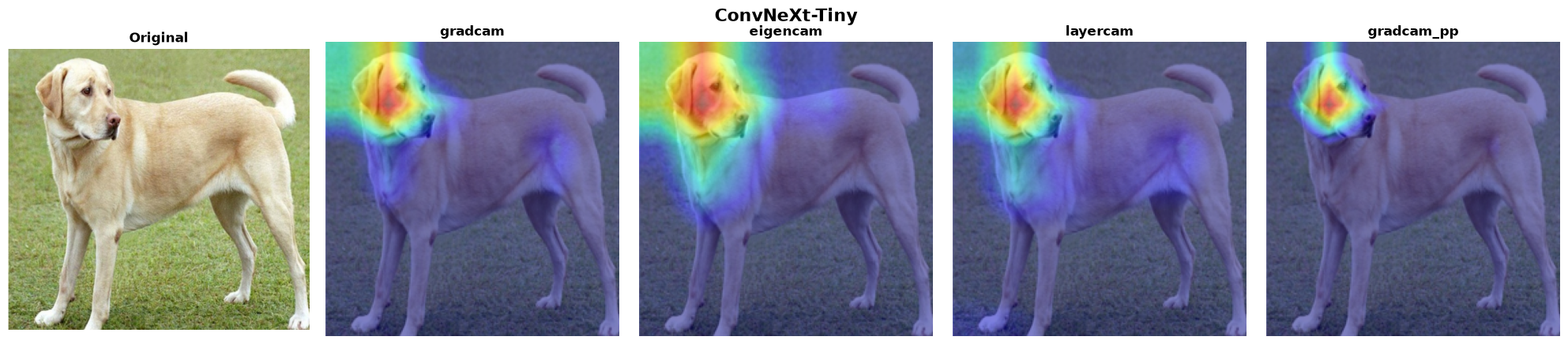

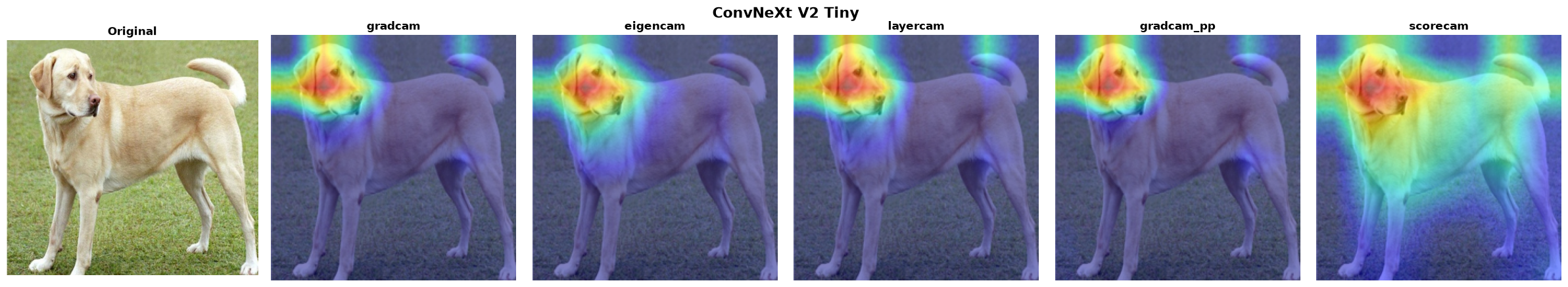

5. ConvNeXt family — Tiny (torchvision), V2 Tiny (timm), Zepto (timm)

ConvNeXt places LayerNorm between the feature maps and the classifier, so gradient-weighted CAMs have an ambiguous sign. torchxai resolves the polarity with an insertion/deletion confidence test, so the heatmaps stay on the subject.

Method	Tiny	V2 Tiny	Zepto
GradCAM	✅ 2,153ms	✅ 2,132ms	✅ 308ms
EigenCAM	✅ 1,437ms	✅ 1,367ms	✅ 236ms
LayerCAM	✅ 2,127ms	✅ 2,207ms	✅ 288ms
GradCAM++	✅ 2,121ms	✅ 2,110ms	✅ 293ms
ScoreCAM	—	✅ 10,676ms	—

model = models.convnext_tiny(pretrained=True)
heatmap = explain(model, "dog.jpg")

model = timm.create_model("convnextv2_tiny.fcmae_ft_in22k_in1k", pretrained=True)
heatmap = explain(model, "dog.jpg")

---

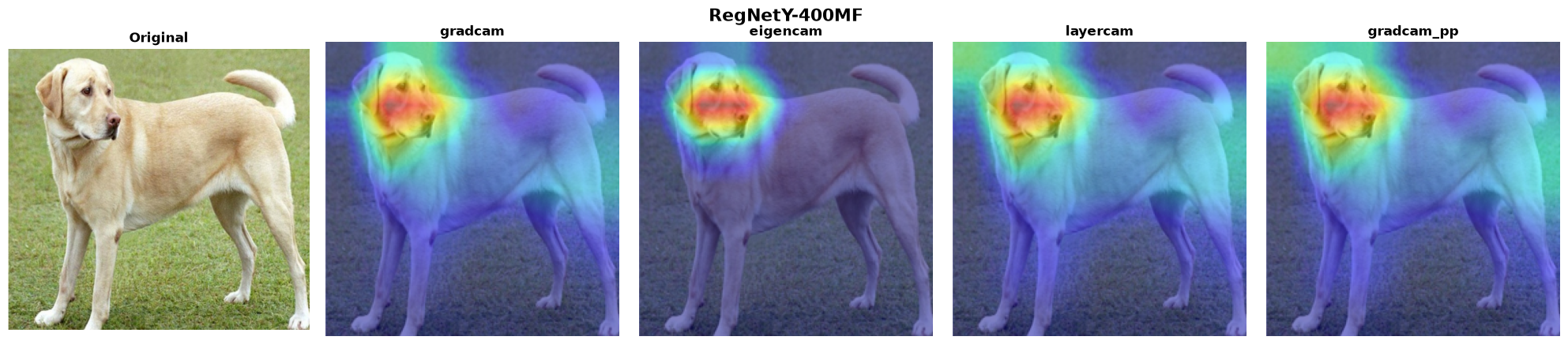

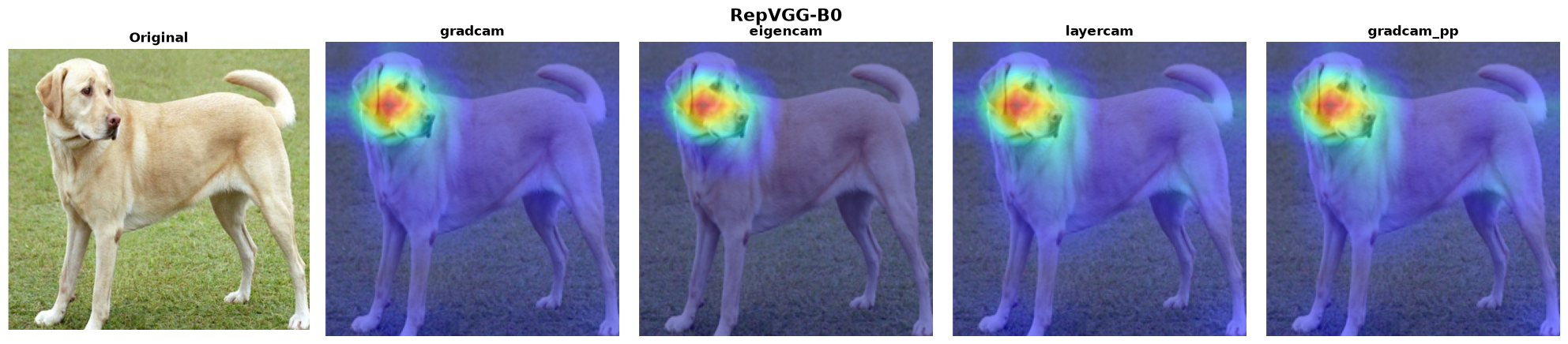

6. RegNetY-400MF (torchvision) & RepVGG-B0 (timm)

Method	RegNetY	RepVGG
GradCAM	✅ 175ms	✅ 65ms
EigenCAM	✅ 133ms	✅ 44ms
LayerCAM	✅ 93ms	✅ 71ms
GradCAM++	✅ 96ms	✅ 70ms

---

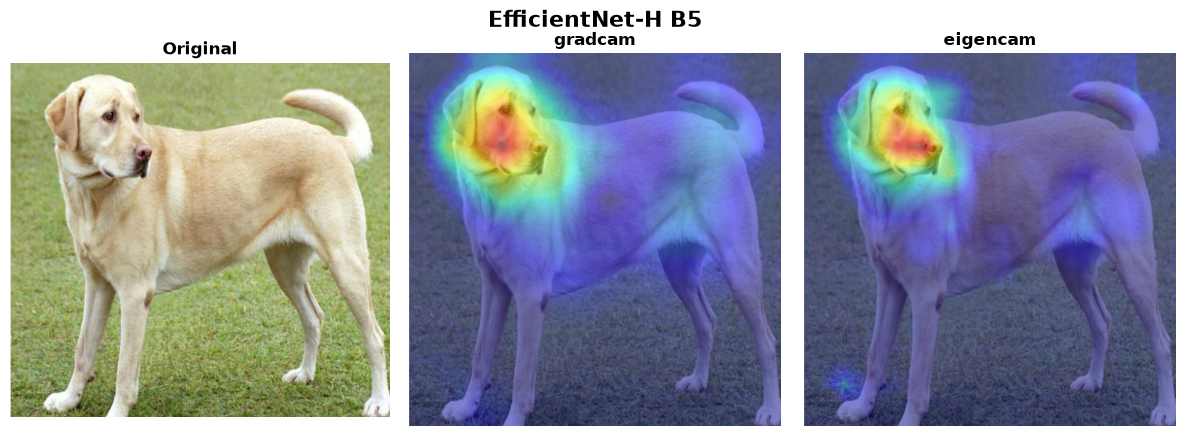

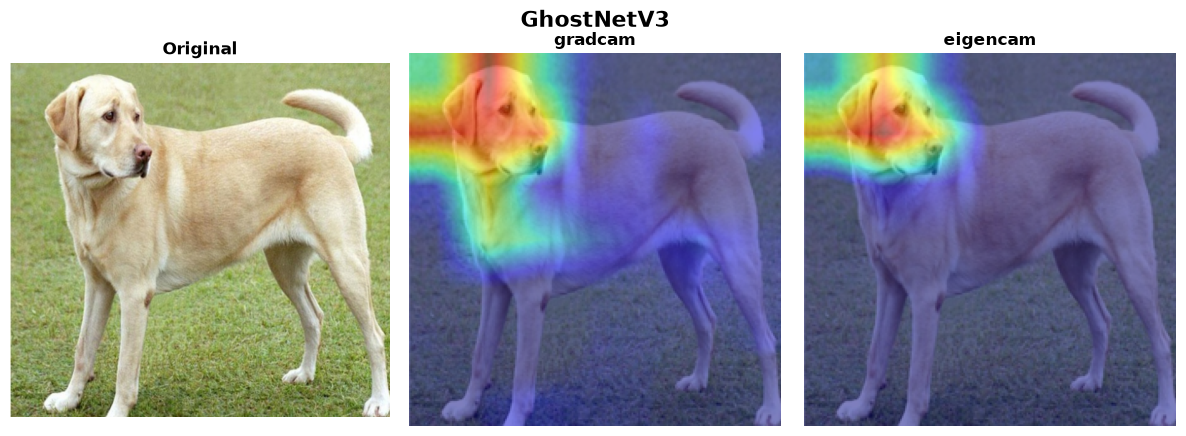

7. GhostNetV3 & EfficientNet-H B5 (timm)

Method	GhostNetV3	EfficientNet-H B5
GradCAM	✅ 4,091ms	✅ 7,043ms
EigenCAM	✅ 2,627ms	✅ 6,450ms

EfficientNet-H B5 runs at its native 448×448 input — torchxai reads the expected input size from the model, no manual configuration needed.

---

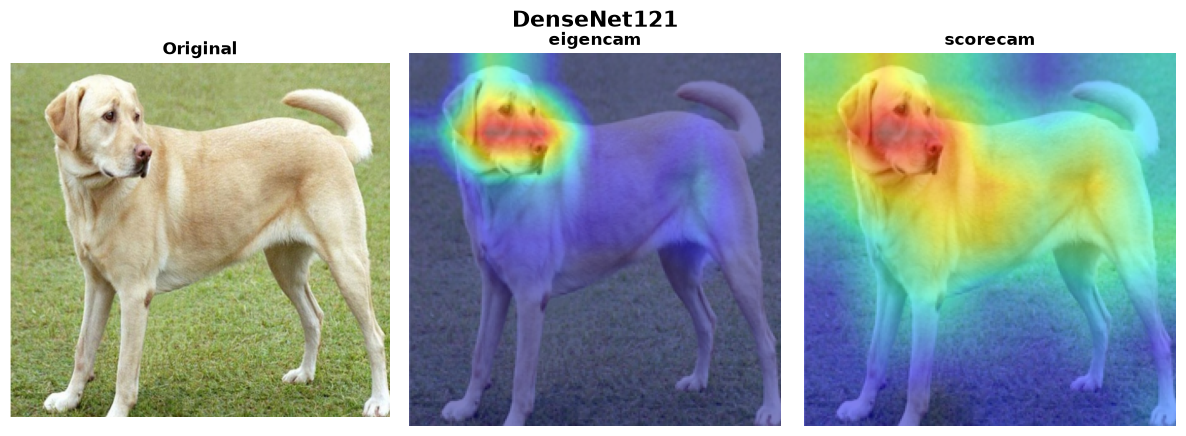

8. DenseNet121 (torchvision)

Gradient-based methods hit a known PyTorch backward-hook conflict with DenseNet's in-place operations. Use the gradient-free methods.

Method	Status	Time	Notes
GradCAM	⚠️	—	PyTorch backward hook + view tensor conflict
EigenCAM	✅	235ms	Recommended for DenseNet
LayerCAM	⚠️	—	Same as GradCAM
GradCAM++	⚠️	—	Same as GradCAM
ScoreCAM	✅	2,047ms	Gradient-free; works correctly

model = models.densenet121(pretrained=True)
heatmap = explain(model, "dog.jpg", method="eigencam")

---

Section 2: Vision Transformers

torchxai captures real attention matrices from timm models (it temporarily disables fused scaled-dot-product attention during the hooked forward pass), so Attention Rollout and Transformer Attribution run genuinely — they no longer silently fall back to activation-based methods.

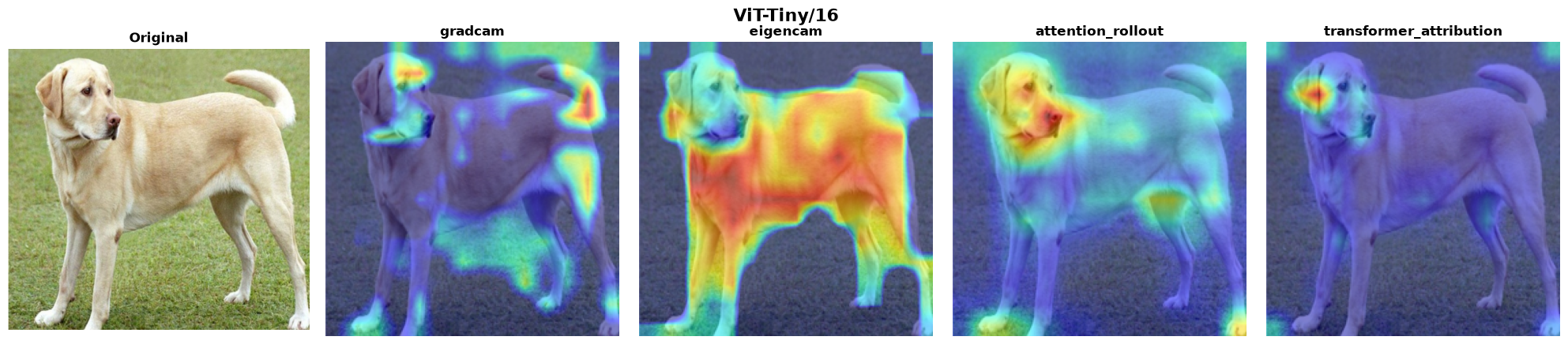

1. ViT-Tiny/16 (timm)

Method	Status	Time	Notes
GradCAM	⚠️	71ms	Noisy on very small ViTs — prefer the methods below
EigenCAM	✅	43ms	Segments the full subject
Attention Rollout	✅	42ms	Auto-selected default for ViTs
Transformer Attribution	✅	34ms	Class-specific

model = timm.create_model("vit_tiny_patch16_224", pretrained=True)
heatmap = explain(model, "dog.jpg")  # auto-selects attention rollout

---

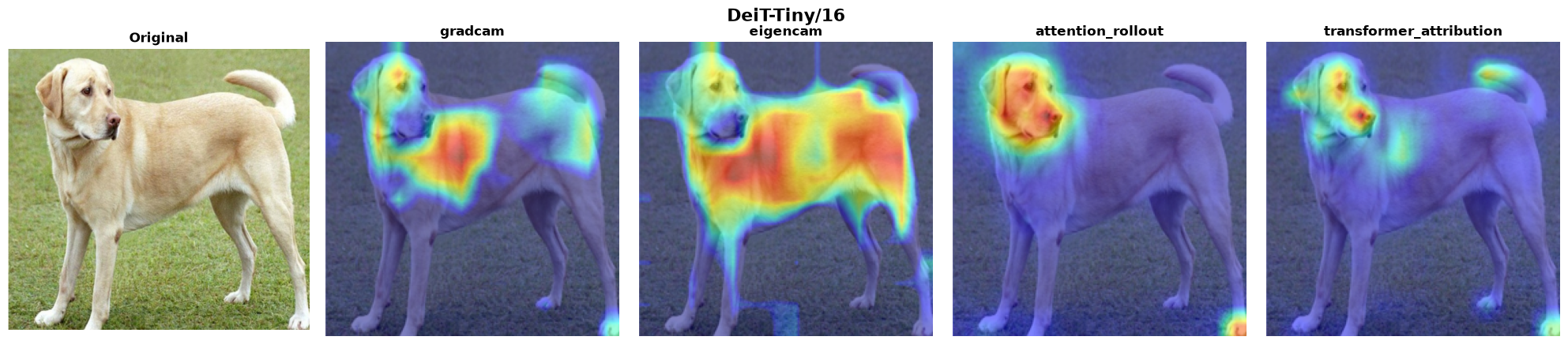

2. DeiT-Tiny/16 (timm)

Method	Status	Time
GradCAM	✅	62ms
EigenCAM	✅	49ms
Attention Rollout	✅	43ms
Transformer Attribution	✅	35ms

---

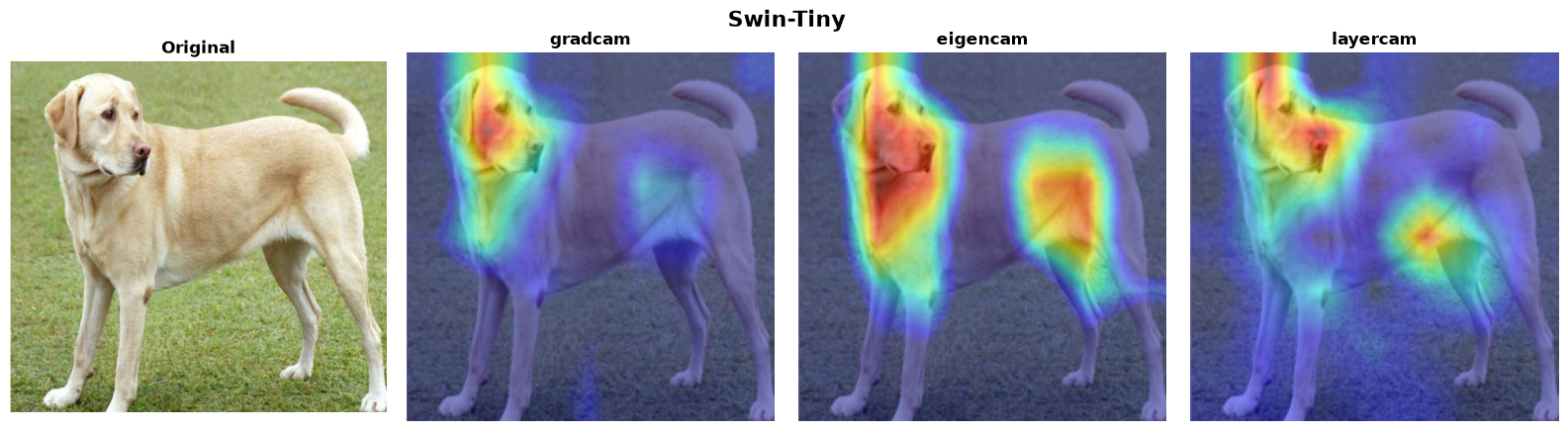

3. Swin-Tiny (timm)

Shifted-window attention — hierarchical patches, not global. Window attention cannot be rolled out globally, so gradient/activation CAMs are the supported methods (rollout falls back to EigenCAM with a warning).

Method	Status	Time
GradCAM	✅	198ms
EigenCAM	✅	159ms
LayerCAM	✅	183ms

---

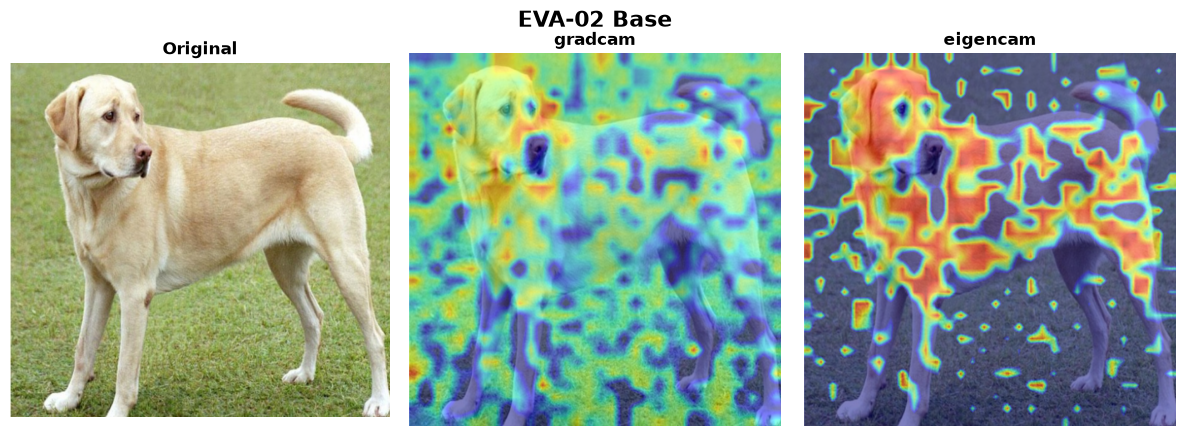

4. EVA-02 Base @ 448 (timm)

torchxai reads the 448×448 input size from the model automatically and derives the token grid from the actual sequence length, so the 32×32 patch grid needs no manual configuration.

Method	Status	Time
GradCAM	✅	1,271ms
EigenCAM	✅	973ms

model = timm.create_model("eva02_base_patch14_448.mim_in22k_ft_in22k_in1k", pretrained=True)
heatmap = explain(model, "dog.jpg")  # input size auto-resolved to 448

---

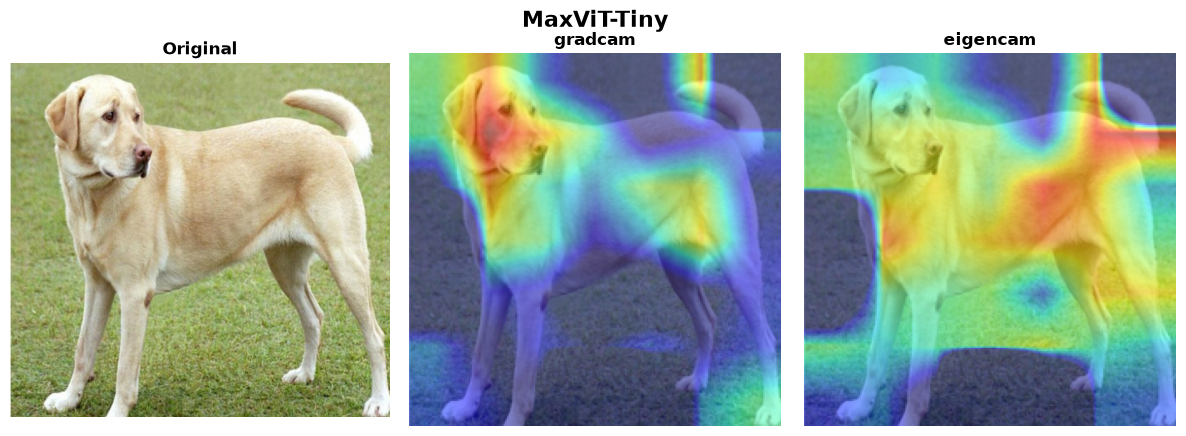

5. MaxViT-Tiny (timm)

Multi-axis attention hybrid. torchxai hooks the full final block (matching the pytorch-grad-cam reference), not an internal sub-module.

Method	Status	Time
GradCAM	✅	1,472ms
EigenCAM	✅	965ms
LayerCAM	⚠️	—

---

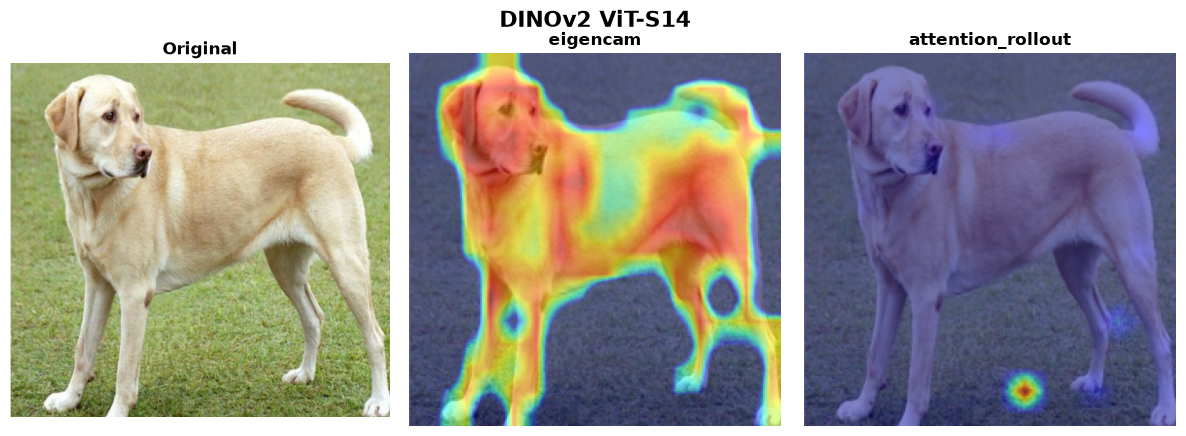

6. DINOv2 ViT-S/14

DINOv2 ships without a classification head. Wrap it with a linear layer for explain() compatibility. EigenCAM is the auto-selected method — it segments the subject from the patch features and needs no trained head.

Method	Status	Time	Notes
EigenCAM	✅	132ms	Auto-selected; works with an untrained head
Attention Rollout	⚠️	88ms	Register-less DINOv2 has attention-sink artifacts that hollow out rollout maps
GradCAM	⚠️	—	Only meaningful with a trained classification head

from torchxai import explain
import torch
import torch.nn as nn

backbone = torch.hub.load("facebookresearch/dinov2", "dinov2_vits14")

class DINOv2Classifier(nn.Module):
    def __init__(self, backbone, num_classes=1000):
        super().__init__()
        self.backbone = backbone
        self.head = nn.Linear(backbone.embed_dim, num_classes)

    def forward(self, x):
        features = self.backbone(x)
        return self.head(features)

model = DINOv2Classifier(backbone)
heatmap = explain(model, "dog.jpg")  # auto-selects EigenCAM

---

Section 3: Object Detection

Detection models are explained with EigenCAM on the backbone/neck features (gradients through detection heads are unreliable). torchxai auto-detects Ultralytics models and targets the last feature layer before the Detect head.

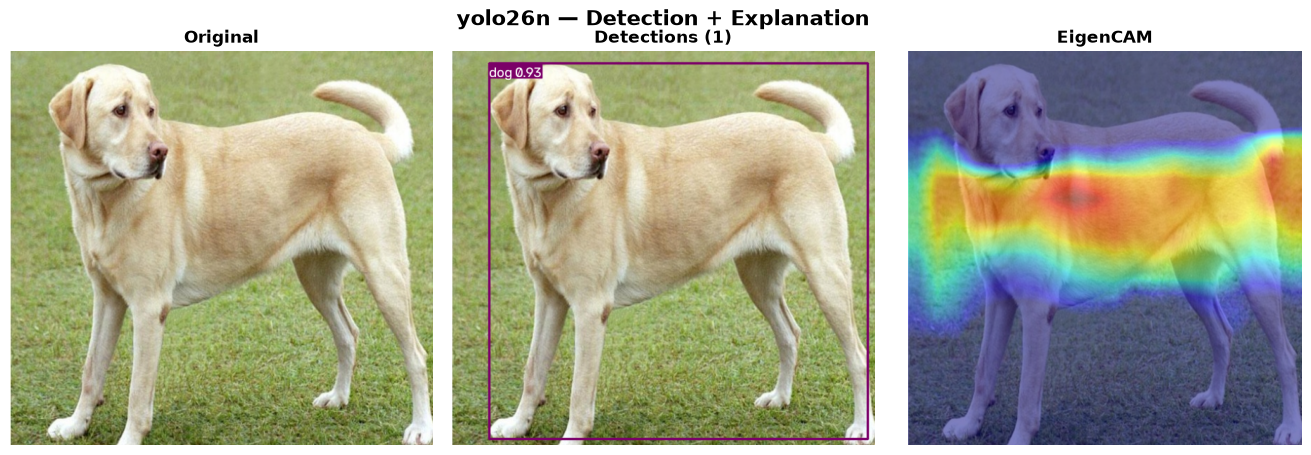

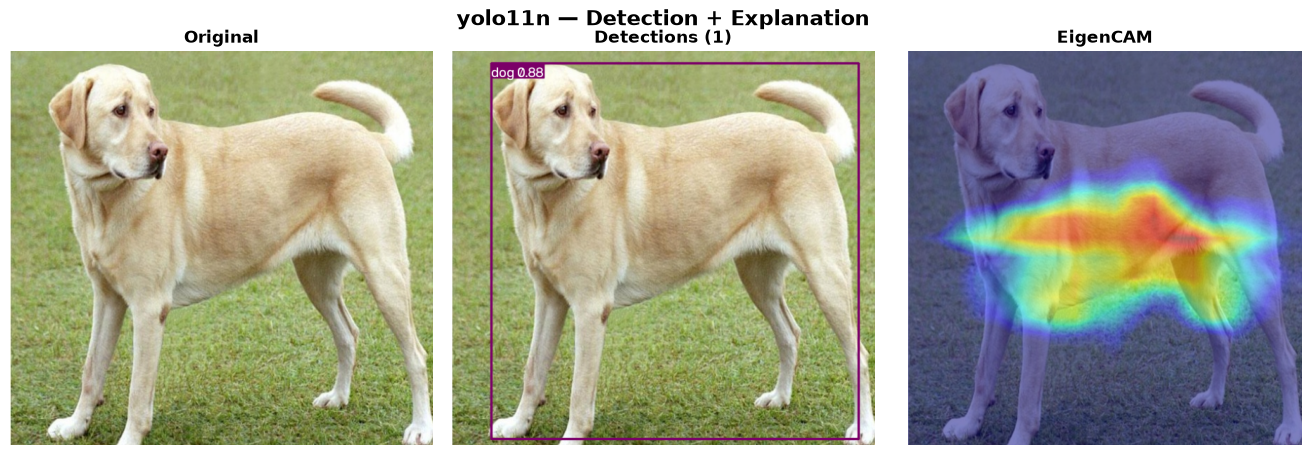

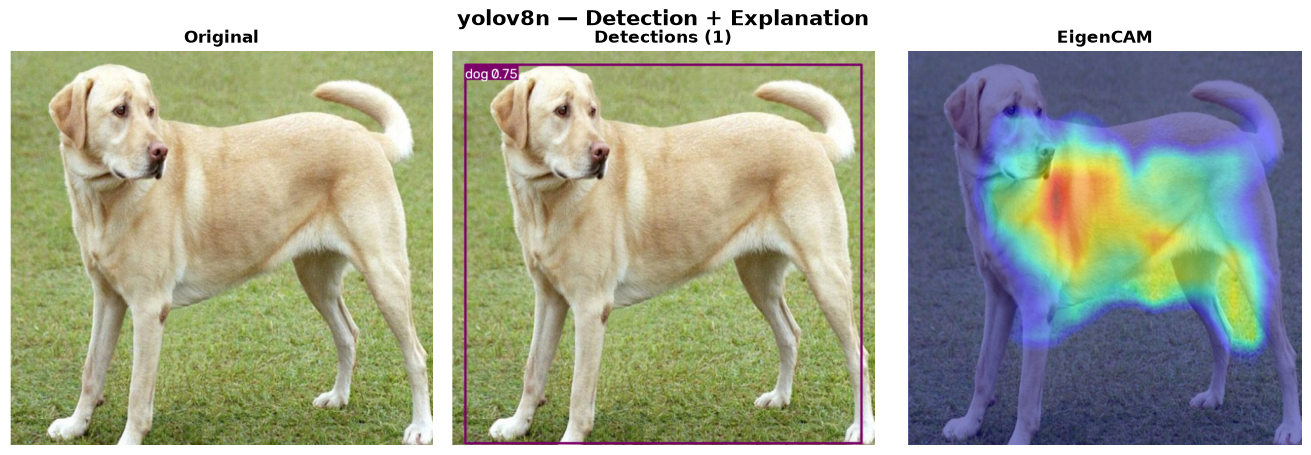

1–3. YOLO26n / YOLO11n / YOLOv8n (Ultralytics)

Model	Detections	EigenCAM
YOLO26n	✅	✅
YOLO11n	✅	✅
YOLOv8n	✅	✅

from ultralytics import YOLO
from torchxai import explain

yolo = YOLO("yolo26n.pt")
results = yolo("dog.jpg")                     # detections

# EigenCAM heatmap of the backbone features (auto-targeted)
heatmap = explain(yolo.model, "dog.jpg", method="eigencam", image_size=(640, 640))

For per-detection explanations (heatmap cropped/masked per bounding box):

from torchxai.detection import explain_detection

explanations = explain_detection(yolo.model, "dog.jpg")
for exp in explanations:
    print(exp.class_id, exp.confidence, exp.heatmap.shape)

---

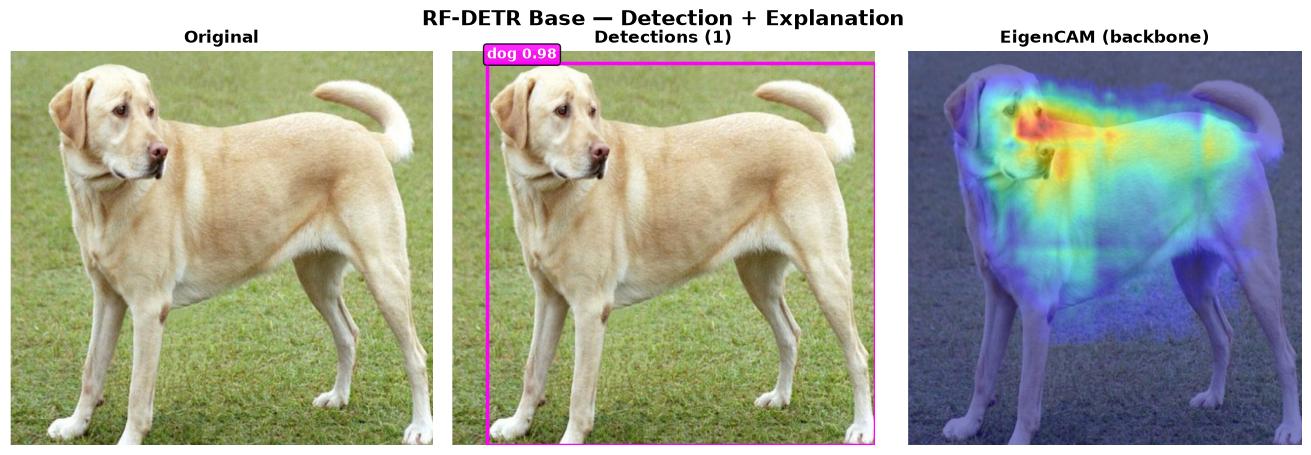

4. RF-DETR Base (Roboflow, ICLR 2026)

Detection and a real backbone heatmap, verified end-to-end.

from rfdetr import RFDETRBase
from torchxai import explain

rf = RFDETRBase()
detections = rf.predict("dog.jpg", threshold=0.5)

core = rf.model.model  # LWDETR nn.Module
heatmap = explain(core, "dog.jpg", method="eigencam",
                  target_layer=core.backbone,
                  image_size=(rf.model.resolution, rf.model.resolution))

---

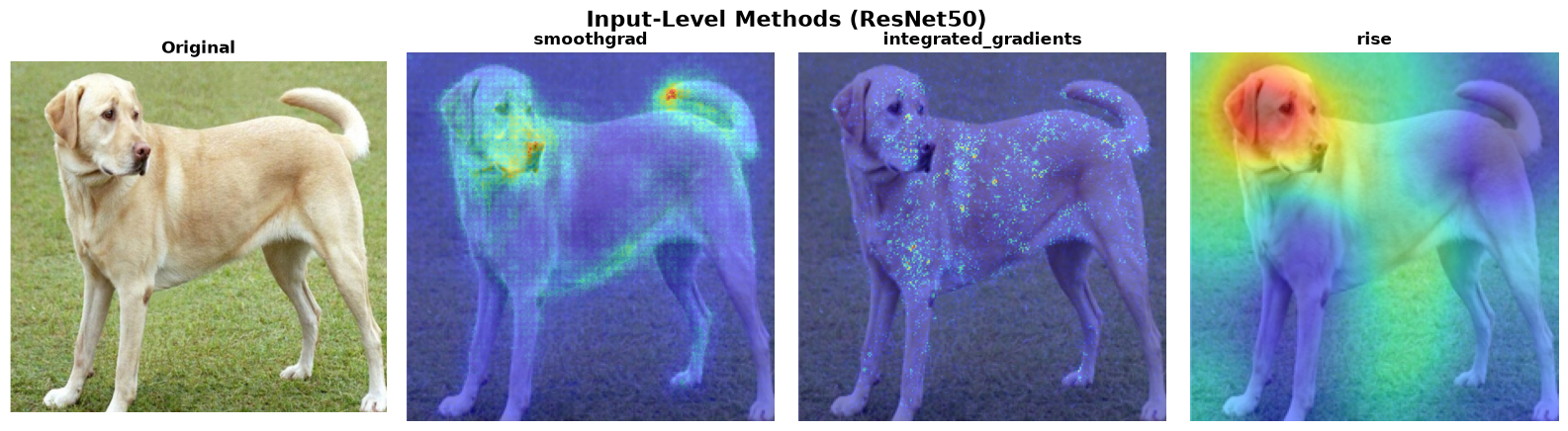

Section 4: Input-Level Methods

SmoothGrad, Integrated Gradients, and RISE operate directly on pixel gradients rather than intermediate layer activations. They are architecture-agnostic — every model in this document is compatible.

Method	Status	Time	Notes
SmoothGrad	✅	~4s	Averages gradients over 50 noisy copies
Integrated Gradients	✅	~4s	50-step path integral
RISE	✅	~3.5min	4,000 random mask samples — most thorough

heatmap = explain(model, "dog.jpg", method="smoothgrad")
heatmap = explain(model, "dog.jpg", method="integrated_gradients")
heatmap = explain(model, "dog.jpg", method="rise")

---

Section 5: Full Compatibility Matrix

Model	GradCAM	EigenCAM	LayerCAM	GradCAM++	ScoreCAM	Attn Rollout	Transf. Attr	SmoothGrad	Int. Grads	RISE
ResNet50	✅	✅	✅	✅	✅	—	—	✅	✅	✅
VGG16	✅	✅	✅	✅	✅	—	—	✅	✅	✅
EfficientNet-B0	✅	✅	✅	✅	✅	—	—	✅	✅	✅
EfficientNetV2-S	✅	✅	✅	✅	—	—	—	✅	✅	✅
MobileNetV3-Small	✅	✅	✅	✅	✅	—	—	✅	✅	✅
MobileNetV4-Small	✅	✅	✅	✅	—	—	—	✅	✅	✅
ConvNeXt-Tiny	✅	✅	✅	✅	—	—	—	✅	✅	✅
ConvNeXt V2 Tiny	✅	✅	✅	✅	✅	—	—	✅	✅	✅
ConvNeXt-Zepto	✅	✅	✅	✅	—	—	—	✅	✅	✅
RegNetY-400MF	✅	✅	✅	✅	—	—	—	✅	✅	✅
RepVGG-B0	✅	✅	✅	✅	—	—	—	✅	✅	✅
GhostNetV3	✅	✅	—	—	—	—	—	✅	✅	✅
EfficientNet-H B5	✅	✅	—	—	—	—	—	✅	✅	✅
DenseNet121	⚠️	✅	⚠️	⚠️	✅	—	—	✅	✅	✅
ViT-Tiny/16	⚠️	✅	—	—	—	✅	✅	✅	✅	✅
DeiT-Tiny/16	✅	✅	—	—	—	✅	✅	✅	✅	✅
Swin-Tiny	✅	✅	✅	—	—	—	—	✅	✅	✅
EVA-02 Base	✅	✅	—	—	—	—	—	✅	✅	✅
MaxViT-Tiny	✅	✅	⚠️	—	—	—	—	✅	✅	✅
DINOv2 ViT-S/14	⚠️	✅	—	—	—	⚠️	—	✅	✅	✅
YOLO26n / YOLO11n / YOLOv8n	—	✅	—	—	—	—	—	—	—	—
RF-DETR Base	—	✅	—	—	—	—	—	—	—	—

Legend: ✅ verified against the automated foreground check · ⚠️ known limitation (see model notes) · — not applicable / not verified for this architecture

---

Section 6: How to Reproduce

Every proof image on this page is generated by generate_proof_images.py in the project root, using real pretrained weights and the same Labrador Retriever input image. The script also writes verification_results.json with a pass/fail verdict for every model × method combination and fails loudly if any heatmap goes flat, inverts onto the background, or crashes.

Install dependencies:

pip install torchxai-explain
pip install timm            # timm model families
pip install ultralytics     # YOLO26n, YOLO11n, YOLOv8n (optional)
pip install rfdetr          # RF-DETR Base (optional)

Run the full proof suite:

python generate_proof_images.py            # everything (~30 min on CPU)
python generate_proof_images.py --skip-slow    # skip ScoreCAM + RISE
python generate_proof_images.py --only resnet50,vit_tiny_16
python generate_proof_images.py --strict   # non-zero exit if any check fails

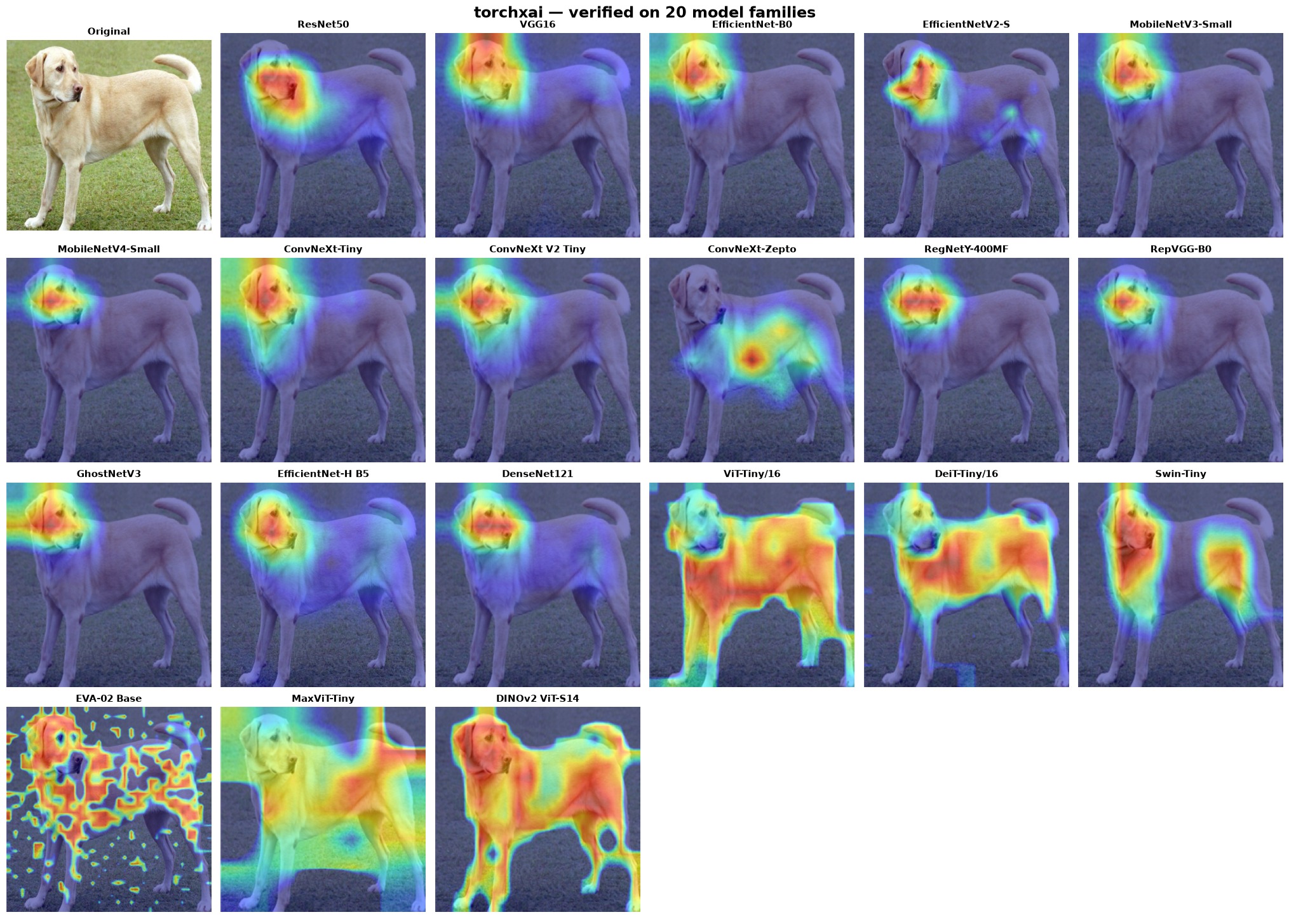

Output images are saved to docs/assets/proof/. The master grid is regenerated automatically at docs/assets/proof/master_grid_final.png.
